Klein VDV500-705 Tone & Probe Test and Trace Kit
Klein VDV500-705 Description

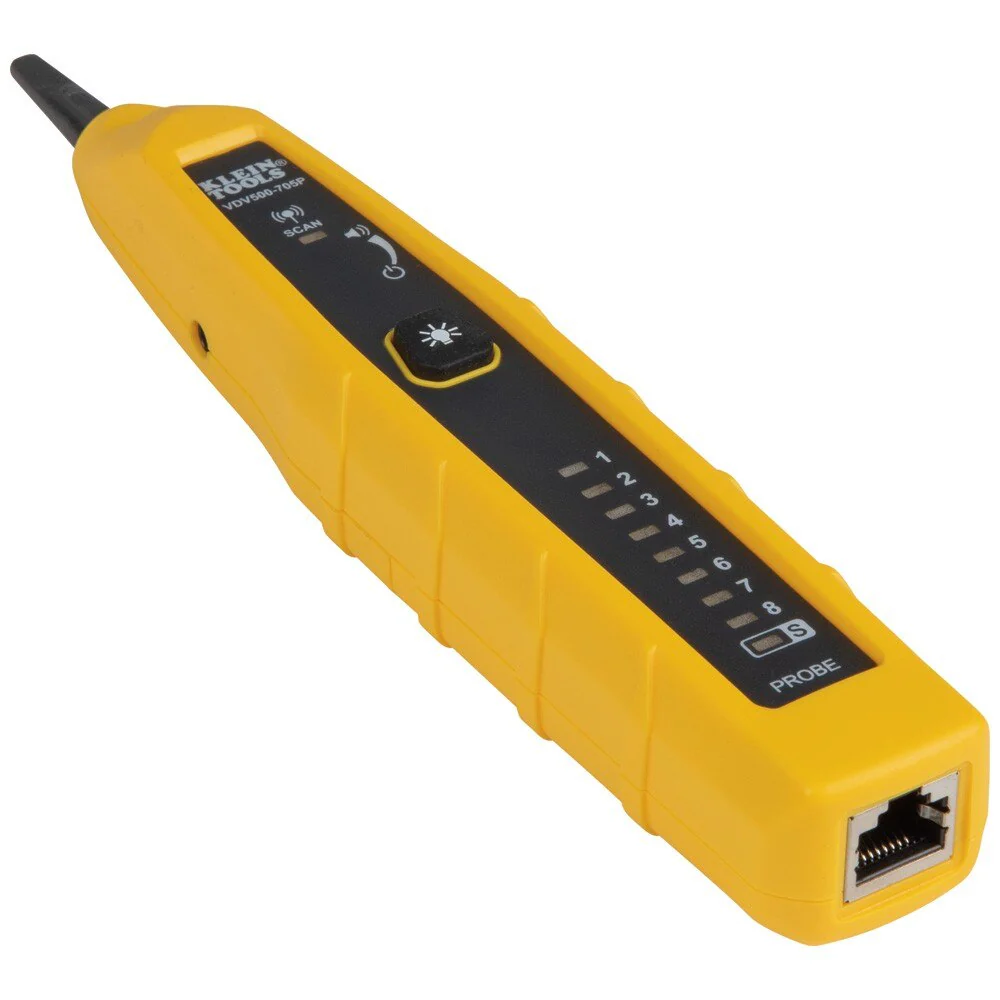

The Tone & Probe Test and Trace Kit provides simple toning and tracing of non-energized wire. The easy-to-use tone generator traces wire when used with the included probe. Alligator clips are provided for unterminated wires and an RJ45 to RJ45 cable to tone or test data cables. The responsive probe is a tone tracer with a durable, non-metallic, conductive tip, a speaker with audible output and headphone jacks for use in noisy environments (headphones not included). The worklight on the probe illuminates dark spaces. The toner and probe together perform pin to pin wire map test.
Klein VDV500-705 Includes
- (1) RJ45 Cable
- (1) RJ12 and Alligator Clip Cable
- Batteries
Klein VDV500-705 Features
- Simple tone generator and wire tracing probe for non-active wire runs
- Responsive probe with durable, non-metallic, conductive tip
- Alligator clips for unterminated wires
- RJ45 to RJ45 test cable
- Toner and probe together perform pin to pin wire map test
- Work light on probe tip for use in dark spaces
- Adjustable volume control
- AAA batteries (included)
- Replaceable test cables available (VDV770-855)
- Headphone jack for noisy environments (headphones not included)
Klein VDV500-705 Specifications
| Type: | Tone Generator Tracing Probe |
| Application: | Wire Toning and Tracing |
| Special Features: | Alligator Clips, RJ11 Plug, RJ45 to RJ45 Test Cable |
| Overall Length: | 10.6" (26.9 cm) |
| Overall Height: | 1.6" (4.1 cm) |
| Overall Width: | 6.9" (17.5 cm) |
| Material: | ABS |
| Batteries: | 4 x AAA |
| Standard: | REACH, RoHS3, CE-EMC |
| Weight: | 10.1 oz (286 g) |
Original: $49.98
-70%$49.98
$14.99More Images
