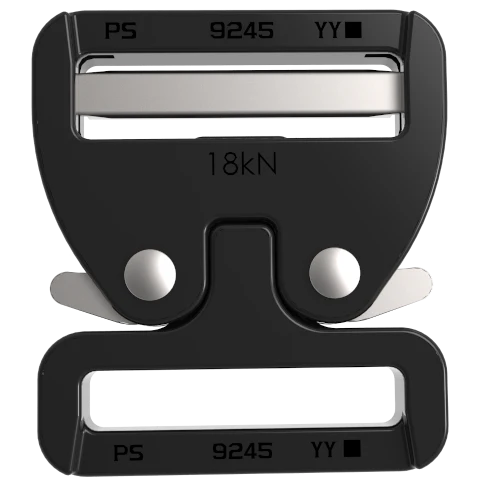

9245 QUICK CONNECT BUCKLE
The Pensafe 9245 Quick Connect Buckle is engineered for strength, performance, and reliability. Manufactured from high quality extruded aluminum, it offers a lightweight yet durable connection for industrial and safety harness applications. The quick connect mechanism provides smooth operation, easy adjustment, and dependable security in demanding environments.
Specifications
• Material: Extruded Aluminum
• Minimum Tensile Strength: 4,000 lbs (17.8 kN)
• Weight: 3.56 oz (101 g)
• Smooth quick connect action
• Compact ergonomic design
Dimensions
• Width: 2.30 in (58.3 mm)
• Internal Slot Width: 1.81 in (46 mm)
• Overall Height: 2.58 in (65.5 mm)
• Lower Section Width: 2.23 in (56.5 mm)
• Lower Slot Width: 1.75 in (44.3 mm)
• Slot Depths: 0.49 in (12.5 mm) top, 0.33 in (8.3 mm) bottom
Certifications
• ANSI Z359.12-2019
• CSA Z259.12-16
